CM-1010-HDU2 USB Camera
The CM-1010-HDU2 delivers high-definition video, advanced PTZ controls, and seamless USB connectivity—purpose-built for professional conferencing and hybrid collaboration environments.
The CM-1010-HDU2 USB Camera is a professional-grade PTZ solution tailored for enterprise conferencing, hybrid classrooms, and broadcast-quality content capture. Equipped with a 1/2.9” high-quality CMOS sensor, it captures Full HD video (1920x1080) with smooth frame rates up to 30fps.
Designed for flexible deployment, the camera supports multiple control protocols and interfaces including RS232, RS485, IR remote, and USB 3.0 UVC. With multiple image presets, high SNR, and a low-power sleep mode, it’s engineered for real-world use in boardrooms, auditoriums, training centers, and more.
Built-in PTZ functions (pan: ±170°, tilt: -30°~+90°) with adjustable speed make this camera a powerful tool for dynamic environments where smooth framing and quick response are critical.
Key Features
Full HD Video
High-quality CMOS sensor with resolution up to 1920x1080 at 30fps
Auto Focus
Fast and accurate focus via enhanced autofocus algorithm
Noise Reduction
Optimized CMOS with advanced 2D/3D noise reduction for crisp images
Multiple Control
Supports RS232, RS485, IR remote, and wireless control
Energy Efficient
Draws <400mW in sleep mode, energy efficient for always-on setups
Preset Recall
Up to 255 preset positions for rapid PTZ recall during meetings
Specifications
General
- Model Number: CM-1010-HDU2
Camera Parameters
- Image Sensor: 1/2.9” High-Quality CMOS
- Effective Pixels: 2.07MP, 16:9
- Video Format: 1920×1080 (30fps), 1280×720 (30fps, 60fps), 960×540 / 640×480 (30fps)
- Optical Zoom: 10x optical zoom
- View Angle: 8.8° ~ 68.8°
- Iris: F1.85 – F2.43
- Min. Illumination: 0.5 Lux (F1.8, AGC ON)
- DNR: 2D&3DDNR
- White Balance: Auto / Manual / One Push
- Focus: Auto / Manual / One Push
- Electronic Shutter: Auto / Manual
- BLC: On / Off
- WDR: OFF/ Dynamic Level Adjustment
- Video Adjustment: Brightness, Gamma, Sharpness, Contrast, B/W, Gamma Curve
- SNR: ≥50dB
Interface and Protocol
- Video Output: USB 2.0, Type A
- Video Compression: H.265, H.264, MJPG

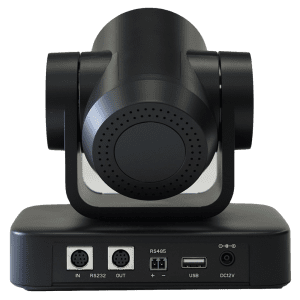

- Control Ports: RS232 in & out, RS485
- Control Protocols: VISCA/Pelco-D/Pelco-P
- Power Supply: HEC3800 Outlet (DC12V)
USB Characteristics
- OS Compatibility: Windows 7/8.1/10, macOS 10.10 or later
- USB communication protocol: UVC
PTZ Parameters
- Pan/Tilt Rotation: -170°~+170°, -30°~ +30°
- Pan/Tile Controller Speed: 0.1~60/Second, 0.1~30%/Second
- Preset Speed: Pan:60°/Second, Tilt: 30/Second
- Preset Points: Up to 255 (10 via remote)
Power & Physical
- Working Voltage: 12V DC
- Working Current: 0.25 A (max)
- Power Consumption: 2.5W(max)
- Operating Temp: -10°C~+50°C, 20%~80%
- Storage Temp: -10°C~ +60°C, 20%~95%
- Dimensions: 156.8mmx112.6mmx139.5mm
- Weight: Approx. 1 kg
- Usage: Indoor only
In the Box
- CM-1010-HDU2 Camera
- Remote Control
- USB 2.0 Cable
- Power Adapter
- RS232 Cable
- User Manual
- Mount (Extra Cost)
Warranty
- 2-Year Limited Warranty
