USB 3.0 Extender (NV-EXT-4USB3-100)

Reliable Long-Distance USB Connectivity

Ideal for boardrooms, auditoriums, and industrial setups, the NV-EXT-4USB3-100 ensures reliable long-distance USB connectivity with fast transfer speeds, flexible integration, and simple installation.

Key Specifications ↓
Book a Demo ↓
1
2
2
3
4

The NV-EXT-4USB3-100 extends USB 3.0 signals up to 100m (328ft) over a single CAT6a cable, making it ideal for applications that require reliable high-speed data transfer between a host computer and multiple USB devices. With support for up to 5Gbps transmission rates and backwards compatibility with USB 2.0 and 1.1, it ensures consistent performance across a wide range of professional environments.

Key Features​

Extended Reach

USB 3.0 extension up to 100m/328ft over CAT6a cable

High-Speed Transfer

Data rates up to 5Gbps with hardware acceleration for isochronous and bulk transfers

Multi-Port Output

Receiver includes 4 × USB 3.0 Type-A outputs (Ports 1 & 2: 5V/1.5A; Ports 3 & 4: 5V/1A)

Control & Integration

Supports RS-232 pass-through and FSYNC GPIO pass-through for industrial camera use

Power Options

Bi-directional 24V PoC supported; includes 24V/2A locking power supply

Plug & Play

No drivers required, easy installation

Specifications

General

  • Product Type: USB 3.0 Extender
  • USB Protocol: USB 3.0
  • Transmission Distance: Up to 100m (328ft) over CAT6a (F/FTP) cable
  • Transmission Rate: Up to 5Gbps
  • ESD Protection: IEC 61000-4-2, ±8kV (air-gap), ±4kV (contact discharge)

Connections – Transmitter (TX)

  • Input:
    • 1 × USB Host [USB-B, 9-pin Female]
  • Output:
    • 1 × HDBT OUT [RJ45, Female]
  • Control:
    • 1 × RS-232 [3-pin 3.5mm Phoenix Connector]
    • 1 × FSYNC [1-pin 3.5mm Phoenix Connector]
    • 1 × SERVICE [USB-C, firmware update]
  • Indicators:
    • USB LED (USB 3.0/2.0 detection)
    • LINK LED (connection status)
    • POWER LED (device status)

Connections – Receiver (RX)

  • Input:
    • 1 × HDBT IN [RJ45, Female]
  • Output:
    • 4 × USB Devices [USB-A, 9-pin Female]
      • Port 1 & 2: 5V/1.5A
      • Port 3 & 4: 5V/1A
  • Control:
    • 1 × RS-232 [3-pin 3.5mm Phoenix Connector]
    • 1 × FSYNC [1-pin 3.5mm Phoenix Connector]
    • 1 × SERVICE [USB-C, firmware update]
  • Indicators:
    • USB LED (USB 3.0/2.0 detection)
    • LINK LED (connection status)
    • POWER LED (device status)

Power & Consumption

  • Power Input: AC 100–240V 50/60Hz
  • Power Output: DC 24V/2A (locking connector)
  • PoC (Power over Cable): Bi-directional, 40W (Max)
  • Power Consumption: Dependent on USB devices connected

Mechanical

  • Housing: Metal enclosure, black finish
  • Dimensions:
    • Transmitter / Receiver: 85mm (W) × 100mm (D) × 25.5mm (H)
  • Weight:
    • Transmitter: 253g
    • Receiver: 260g
  • Mounting: Includes mounting ears and machine screws

Environmental

  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
  • Operating Humidity: 20% ~ 80% RH (non-condensing)
  • Storage Humidity: 10% ~ 90% RH (non-condensing)

Package Contents

  • 1 × USB 3.0 Extender (Transmitter)
  • 1 × USB 3.0 Extender (Receiver)
  • 1 × 24V/2A Locking Power Supply
  • 2 × 4-pin 3.5mm Phoenix Connectors (Male)
  • 4 × Mounting Ears
  • 8 × Machine Screws (KM3×4)
  • 1 × User Manual

OPERATION CONTROLS AND FUNCTIONS

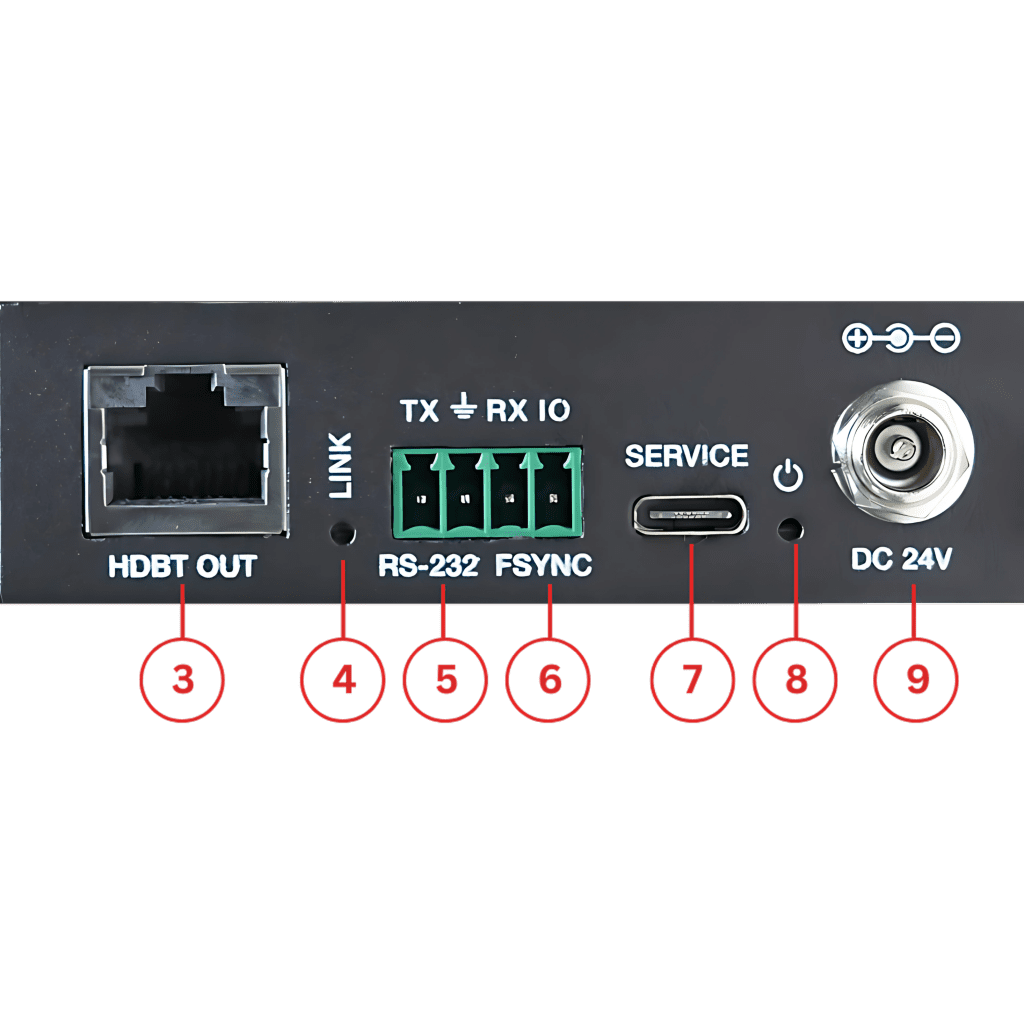

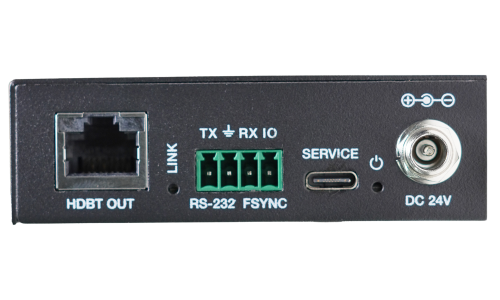

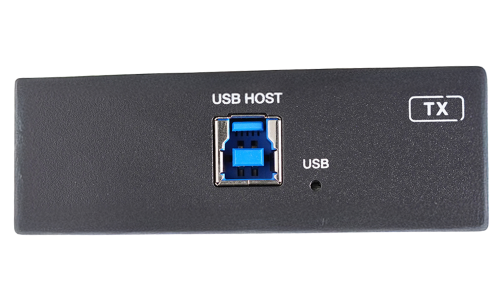

TRANSMITTER PANEL

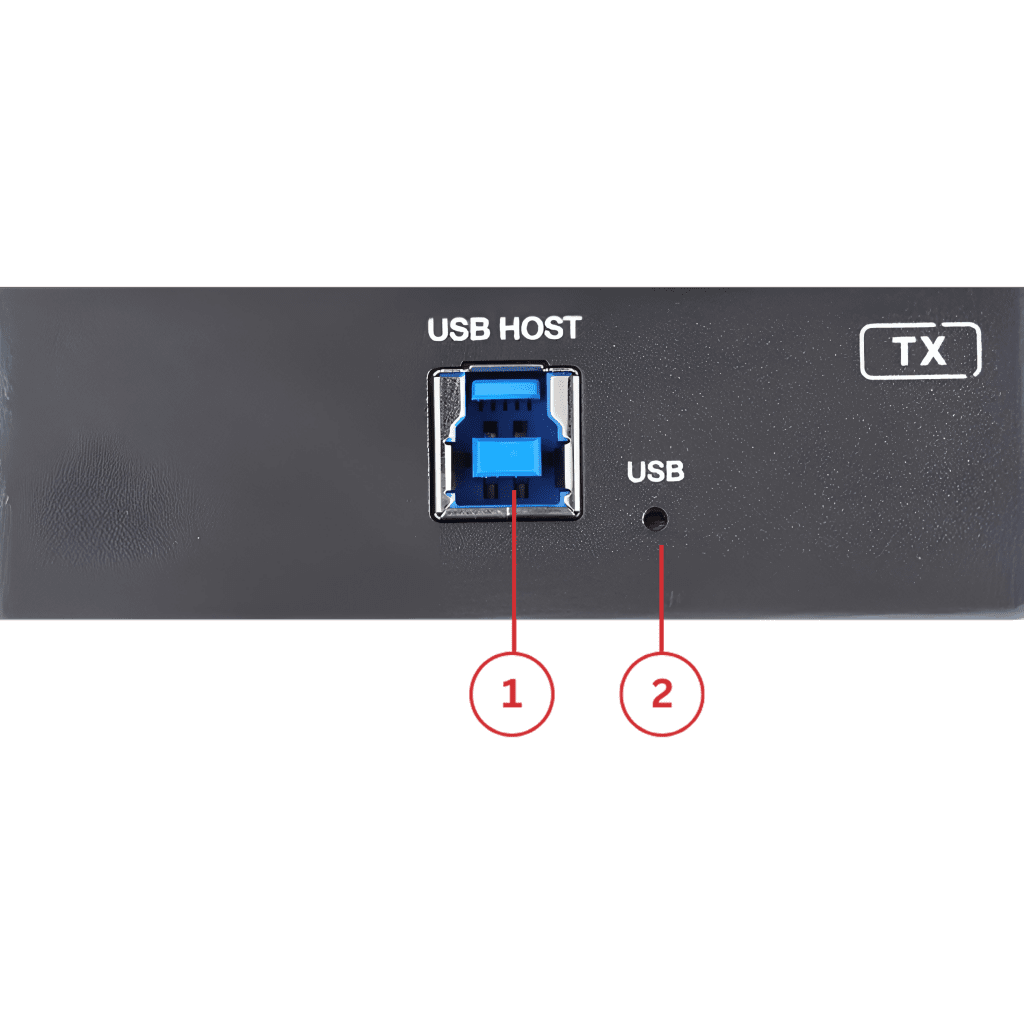

  1. USB HOST: Host port, supporting USB 3.2 Gen 1. Connects to a PC or host.

  2. USB LED: USB signal indicator.

  3. HDBT OUT: Connects to the HDBT IN port on Receiver with CAT cable.

  4. LINK LED: Connection signal indicator.

  5. RS-232: 3-pin phoenix connector, connected to a PC or control system for RS-232 command pass-through.

  6. FSYNC: FSYNC port, used for level pass-through to the Receiver, and synchronizing the external devices. The default level is 5V.

  7. SERVICE: Firmware update port.

  8. POWER LED: The LED will be on when the Transmitter is powered on.

  9. DC 24V: DC 24V/2A power input port.

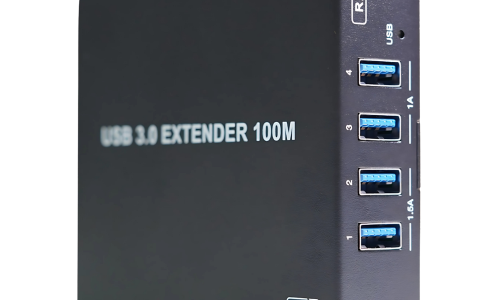

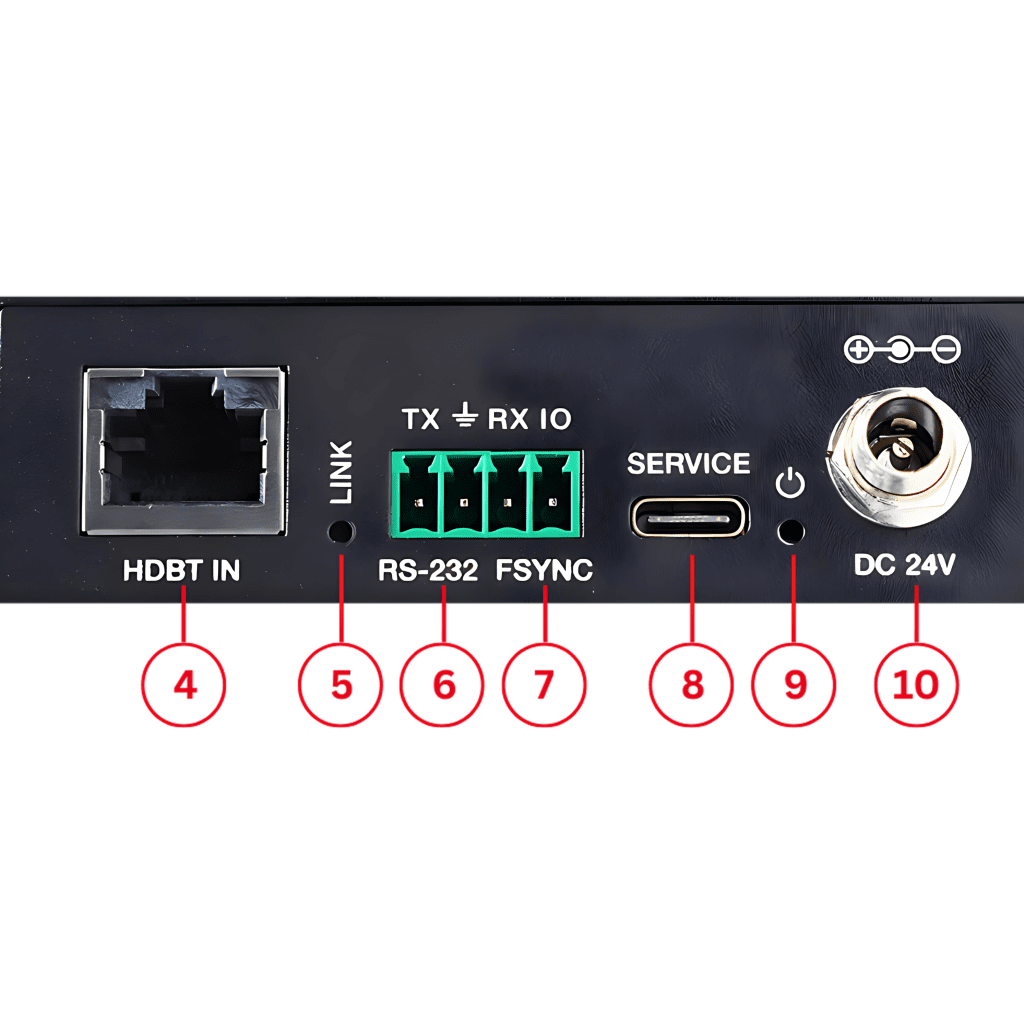

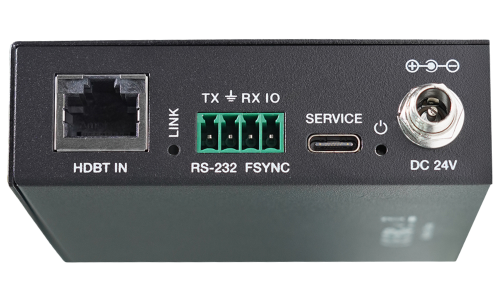

RECEIVER PANEL

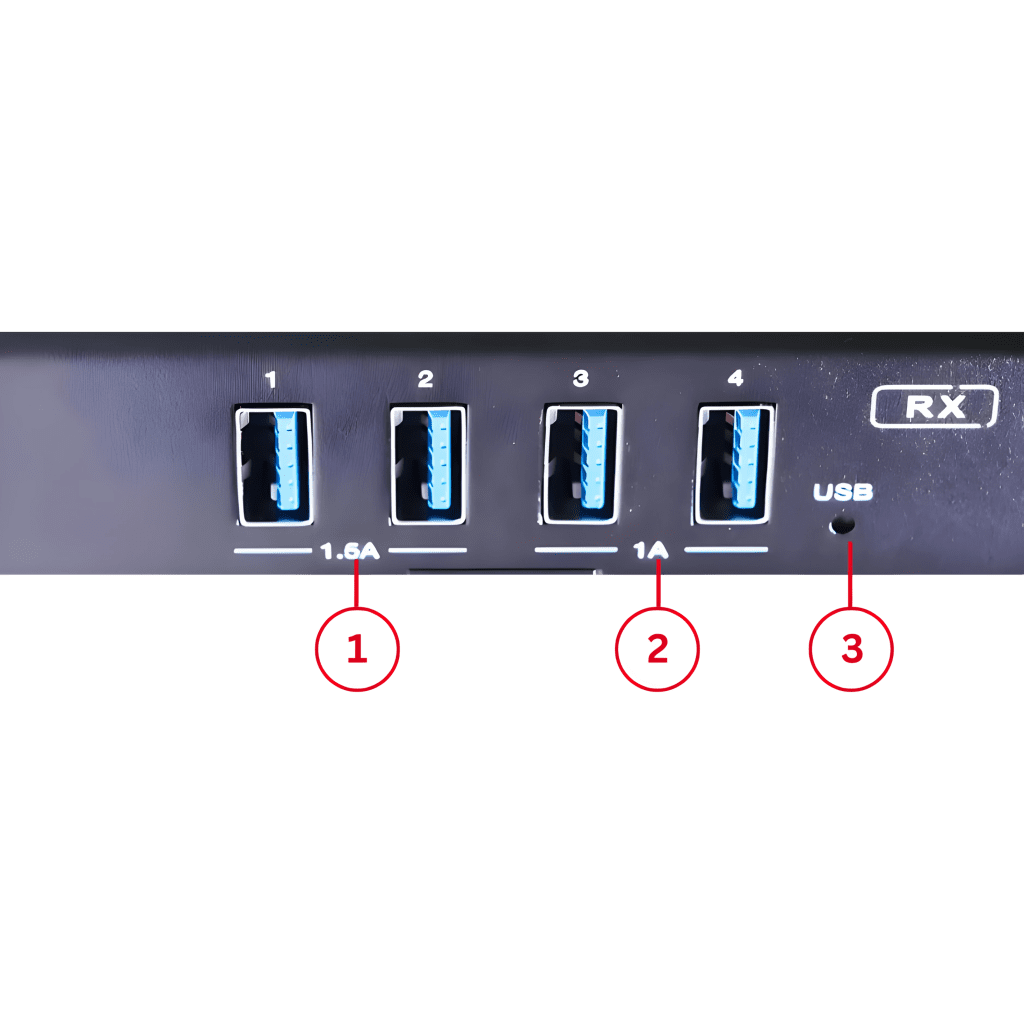

  1. USB 1/2: Connect to USB devices, and max output power is up to 5V/1.5A.

  2. USB 3/4: Connect to USB devices, and max output power is up to 5V/1A.

  3. USB LED: USB signal indicator.

  4. HDBT IN: Connects to the HDBT OUT port on Transmitter with CAT cable.

  5. LINK LED: Connection signal indicator.

  6. RS-232: 3-pin phoenix connector, connected to a PC or control system for RS-232 command pass-through.

  7. FSYNC: FSYNC port, receiving level pass-through from the Transmitter, and synchronizing the external devices. Default level is 5V.

  8. SERVICE: Firmware update port.

  9. POWER LED: The LED will be on when the Receiver is powered on.

  10. DC 24V: DC 24V/2A power input port.
